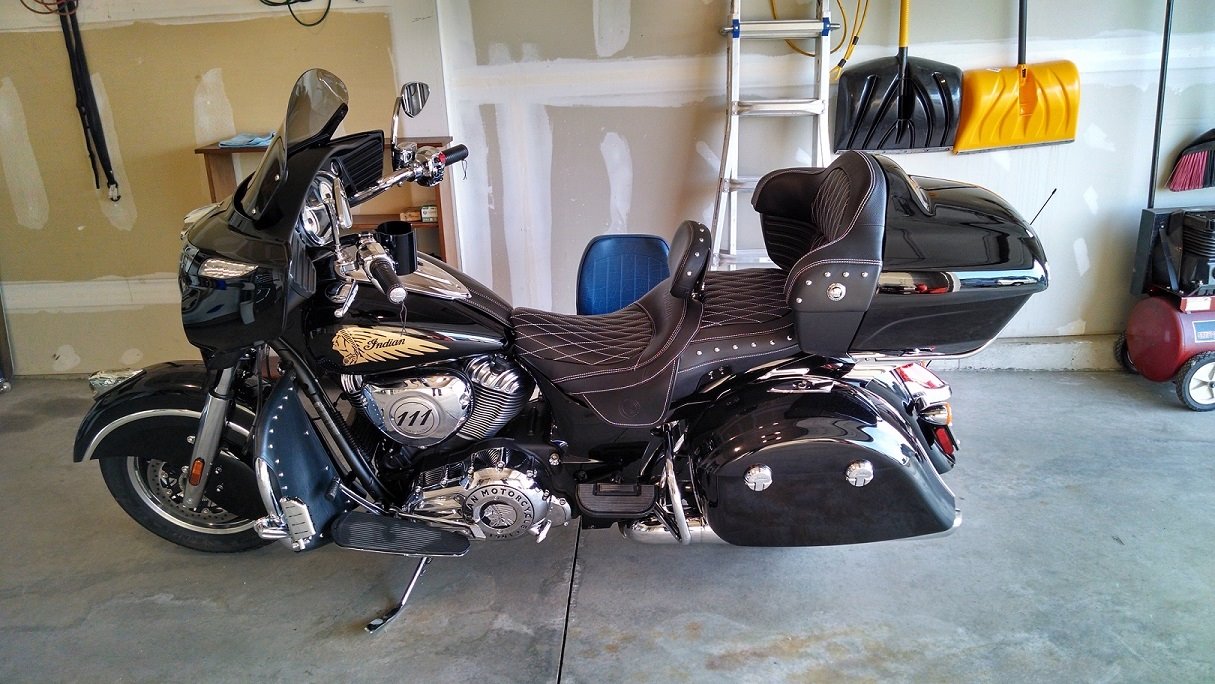

Jerry's 2014 Indian Chieftain

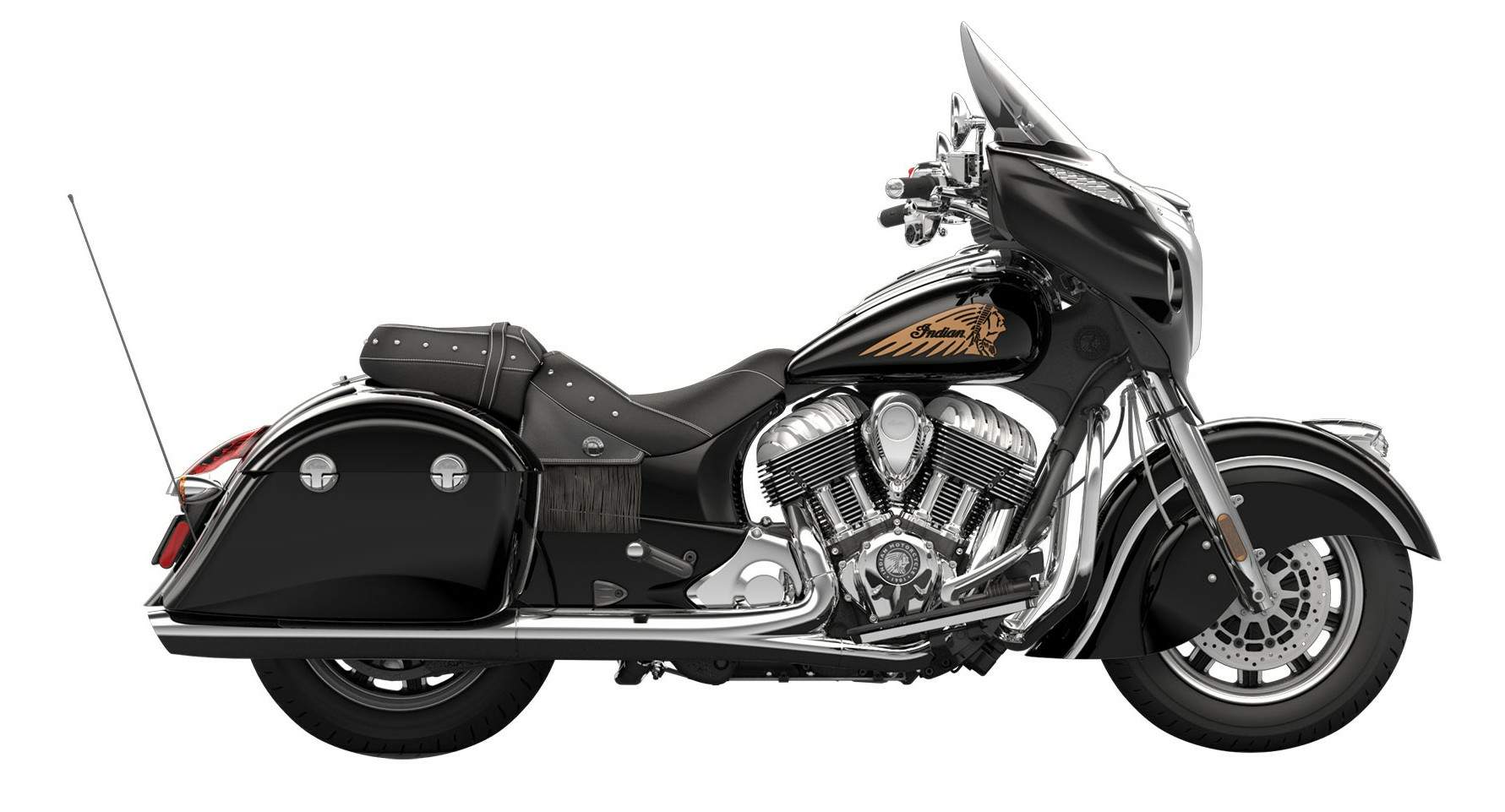

Indian Chieftain THUNDER STROKE™ 111

bike dims

SPECIFICATIONS

ENGINE

DRIVE/DRIVEN CLUTCH

WET, MULTI-PLATE

ENGINE TYPE

THUNDER STROKE® 111

DISPLACEMENT

111 CU IN / 1811 CC

BORE X STROKE

3.976 X 4.449" (101MM X 113MM)

COMPRESSION RATIO

9.5:1

ELECTRONIC FUEL INJECTION SYSTEM

CLOSED LOOP FUEL INJECTION / 54MM BORE

DRIVETRAIN

PRIMARY DRIVE

GEAR DRIVE WET CLUTCH

PERFORMANCE

PEAK TORQUE

119.2 FT-LBS/ 138.9 N M

PEAK TORQUE RPM

3000 RPM/2600 RPM

GEAR RATIO (OVERALL)

1ST

9.403 : 1

2ND

6.411 : 1

3RD

4.763 : 1

4TH

3.796 : 1

5TH

3.243 : 1

6TH

2.789 : 1

FINAL DRIVE

2.2 : 1

CHASSIS

SUSPENSION: FRONT - TYPE/TRAVEL

TELESCOPIC FORK/4.7 IN (119 MM) - 46MM CARTRIDGE FORKS WITH DUAL RATE SPRINGS

SUSPENSION: REAR - TYPE/TRAVEL

SINGLE SHOCK / 4.49 IN (114 MM) / PNEUMATIC ADJUSTMENT

BRAKES/FRONT

DUAL / FLOATING ROTOR / 4 PISTON CALIPER DUAL FRONT / 300MM WITH ANTI-LOCK BRAKES

BRAKES/REAR

SINGLE / FLOATING ROTOR / 2 PISTON CALIPER / 300MM WITH ANTI-LOCK BRAKES

TIRES/FRONT

DUNLOP® ELITE 3 130/90B16 73H

TIRES/REAR

DUNLOP® ELITE 3 180/60R16 80H

WHEELS

CAST 16" X 3.5" FRONT AND 16" X 5" REAR

EXHAUST SYSTEM

SPLIT DUAL EXHAUST W/ CROSS-OVER

DIMENSIONS

FUEL CAPACITY (LITRES)

5.5 GALLONS / 20.8 LITERS

GROUND CLEARANCE

5.6 IN / 142 MM

OVERALL HEIGHT (IN./MM.)

60.2 IN / 1529 MM

OVERALL WIDTH (IN./MM.)

40.2 IN / 1022 MM

RAKE/TRAIL

25°

SEAT HEIGHT

26.0 IN / 660 MM

WHEELBASE

65.7 IN / 1668 MM

OVERALL LENGTH (IN./MM.)

101.2 IN / 2571 MM

GVWR

1385 LBS / 630 KGS

TRAIL

5.9 IN / 150.0 MM

WEIGHT (EMPTY TANK / FULL OF FUEL)

815 LBS / 848 LBS (370 KG / 385 KG)

STANDARD

STANDARD EQUIPMENT

ABS; CAST ALUMINUM FRAME WITH INTEGRATED AIR-BOX; CRUISE CONTROL; DRIVING LIGHTS; HIGHWAY BAR; KEYLESS START; POWER WINDSHIELD; DESERT TAN GENUINE LEATHER SEATS; REMOTE LOCKING HARD SADDLE BAGS; TIRE PRESSURE MONITORING; 100 WATT STEREO WITH AM/FM BLUETOOTH AND SMARTPHONE COMPATIBLE INPUT

ELECTRIC

GAUGES

FAIRING MOUNTED INSTRUMENT CLUSTER FEATURING ELECTRONIC SPEEDOMETER, TACHOMETER, AND FUEL GAUGE WITH ODOMETER, DUAL TRIPMETERS WITH DISTANCE AND TIME, INSTANTANEOUS AND AVERAGE FUEL ECONOMY; FUEL RANGE; REAL-TIME CLOCK; AMBIENT AIR TEMPERATURE; GEAR POSITION DISPLAY; FRONT AND REAR TIRE PRESSURE; ENGINE HOURS OF OPERATION; ENGINE OIL LIFE PERCENTAGE; AVERAGE SPEED; BATTERY VOLTAGE; RADIO INFORMATION DISPLAY; VEHICLE TROUBLE CODE READOUT; HEATED GRIP LEVEL (IF HEATED GRIPS INSTALLED); AND 15 LED TELLTALE INDICATORS: CRUISE CONTROL ENABLED, CRUISE CONTROL SET, NEUTRAL, HIGH BEAM, TURN SIGNAL, ABS, CHECK ENGINE, LOW TIRE PRESSURE, BATTERY, LOW FUEL, SECURITY SYSTEM, LOW ENGINE OIL PRESSURE AND MPH OR KM/H UNIT DESIGNATION
